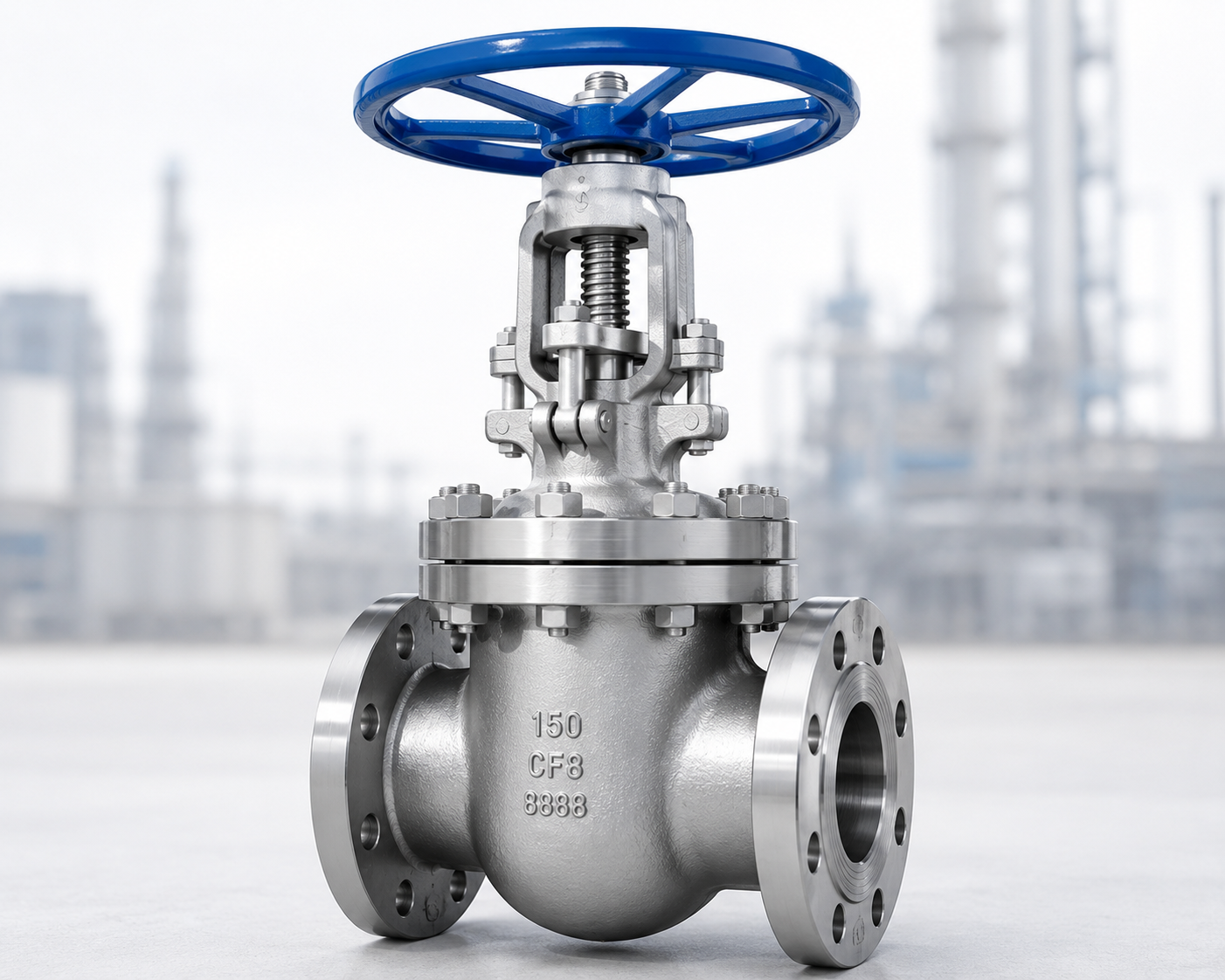

GATE VALVE
CLASS -150, 300, 600
SIZE RANGE - 15 to 900mm
BODY & BONNET
ASTM A216 Gr. WCB, ASTM A217 Gr. WC6 / WC9 / C5 / C12, ASTM A352 Gr. LCB, ASTM A351 Gr. CF8 / CF8M / CF3 / CF3M
TRIMS
ASTM A276 TYPE 410 / 304 / 316
DESIGN STANDARD
API 600 / BS EN ISO 15761 / ASME B16.34
TESTING STANDARD
API 598 / BS EN 12266-1
ENDS
Flanged End / Butt Weld End

TEST PRESSURES IN BAR

#150 #300 #600
HYDRO SHELL 30 76 156
HYDRO SEAT 22 56 113
AIR SEAT 7 7 7

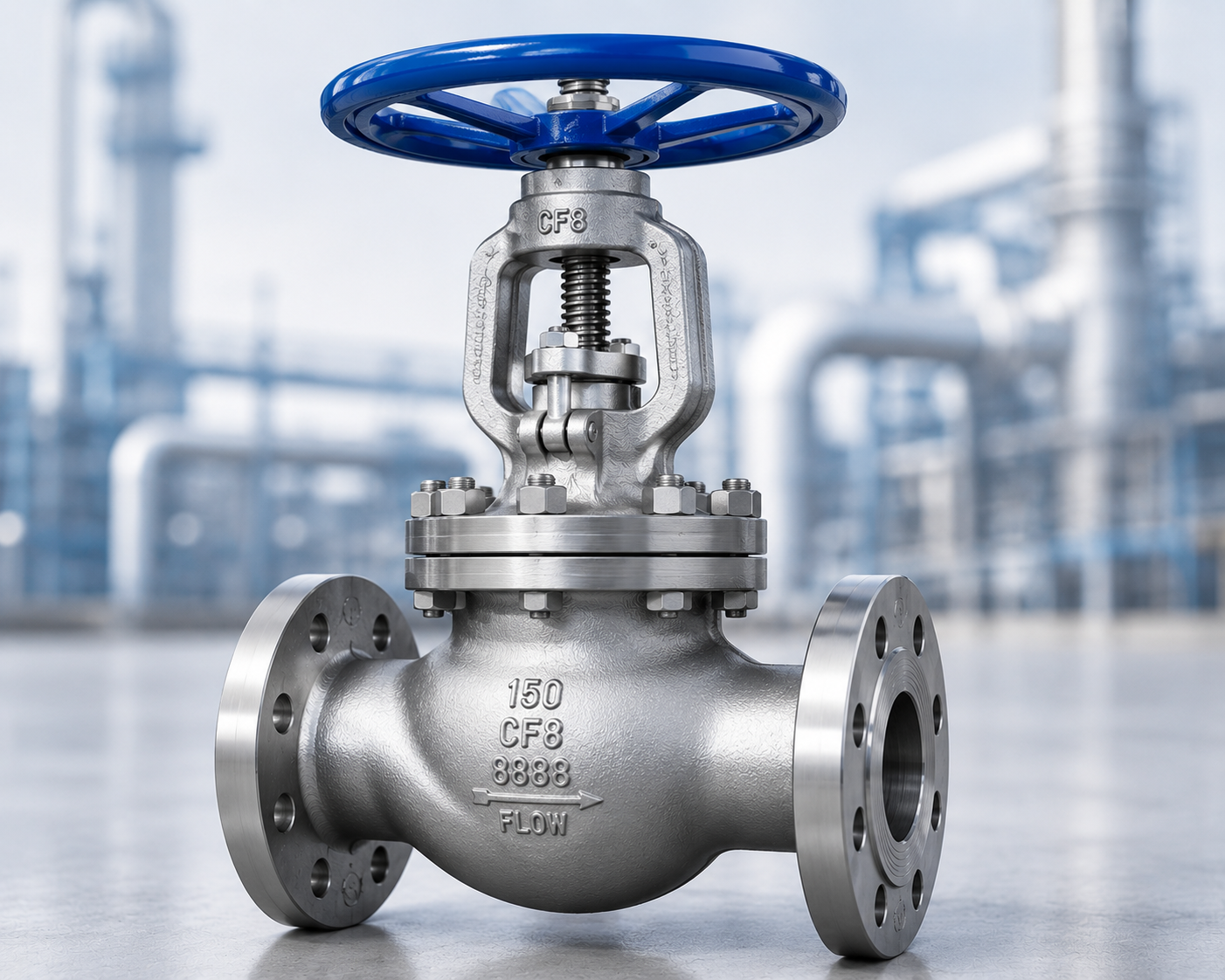

GLOBE VALVE
CLASS -150, 300, 600
SIZE RANGE - 15 to 300mm
BODY & BONNET
ASTM A216 Gr. WCB, ASTM A217 WC6 / WC9, ASTM A351 CF8 / CF8M
TRIMS
ASTM A276 TYPE 410 / 304 / 316
DESIGN STANDARD
BS 1873 / ASME B16.34
TESTING STANDARD
API 598
ENDS
Flanged End / Butt Weld End

TEST PRESSURES IN BAR

#150 #300 #600
HYDRO SHELL 30 76 156
HYDRO SEAT 22 56 113
AIR SEAT 7 7 7

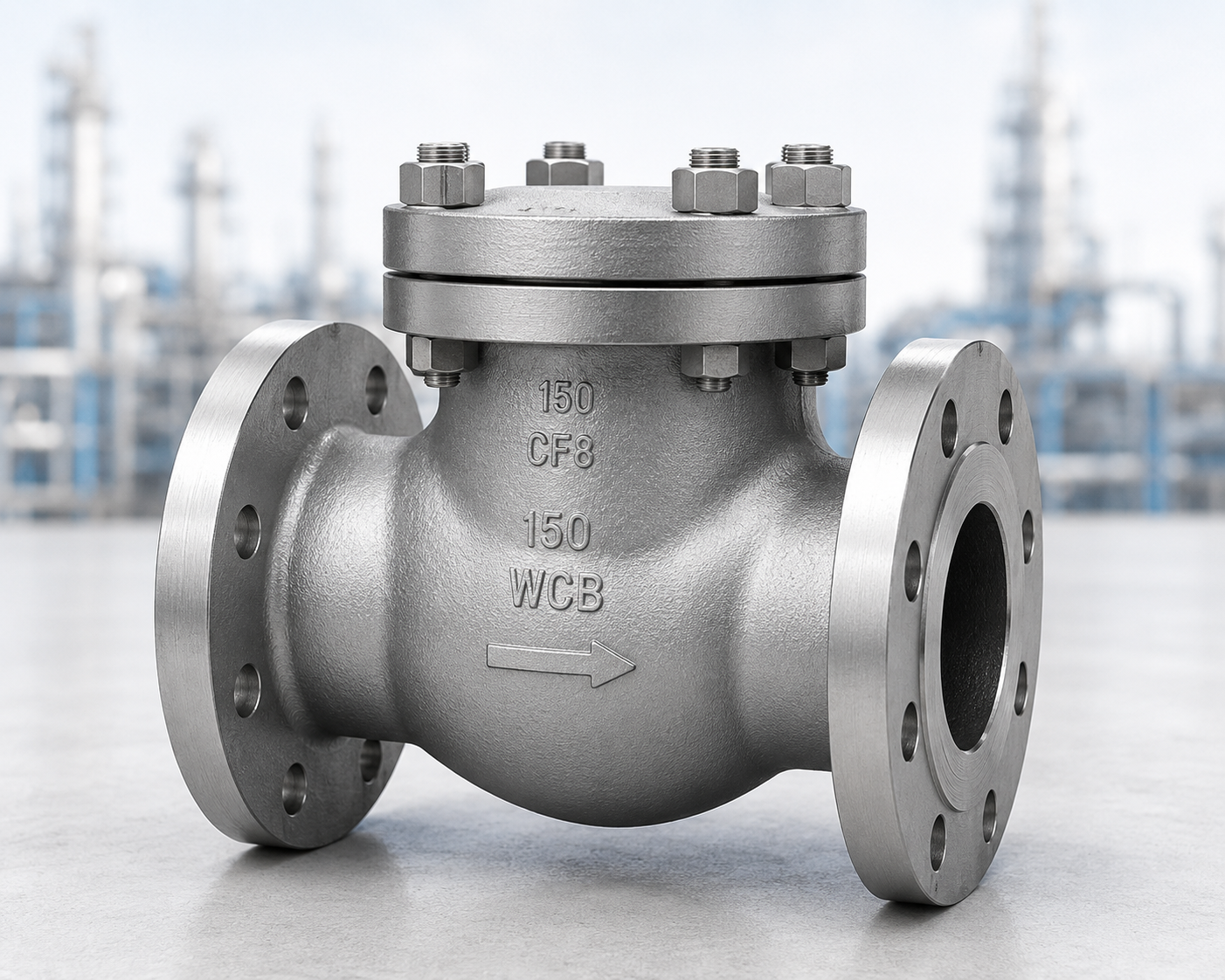

SWING CHECK VALVE
CLASS -150, 300, 600
SIZE RANGE - 15 to 600mm
BODY & BONNET
ASTM A216 Gr. WCB, ASTM A217 Gr. WC6 / WC9 / C5 / C12, ASTM A352 Gr. LCB, ASTM A351 Gr. CF8 / CF8M / CF3 / CF3M
DESIGN STANDARD
API 6D / ASME B16.34
TESTING STANDARD
API 598 / BS EN 12266-1
ENDS
FLANGED END / BUTT WELD END

TEST PRESSURES IN BAR

#150 #300 #600
HYDRO SHELL 30 76 156
HYDRO SEAT 22 56 113
AIR SEAT 7 7 7

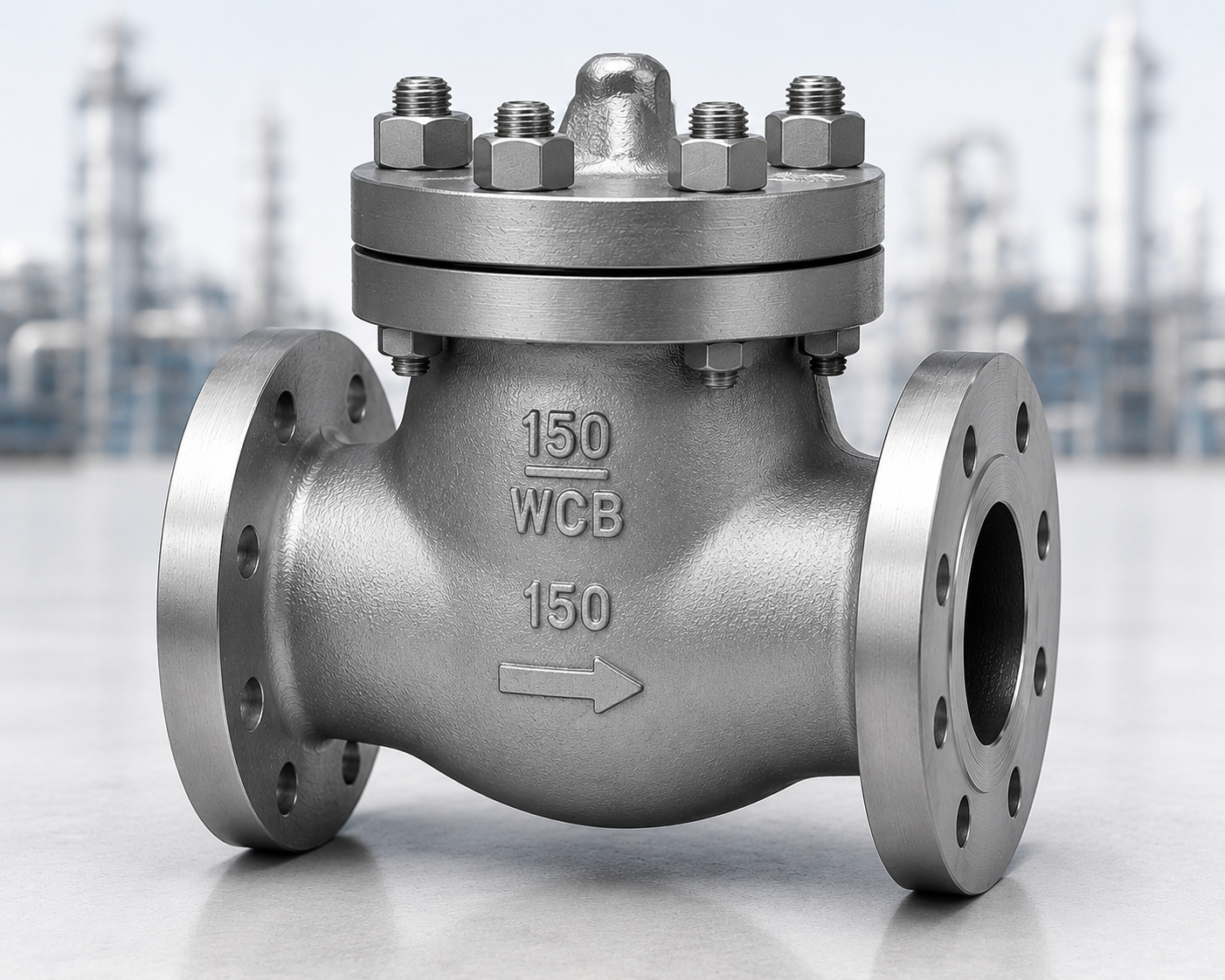

CAST STEEL LIFT CHECK VALVES
CLASS -150, 300
SIZE RANGE - 15 to 50 mm
BODY & BONNET
ASTM A216 Gr. WCB, ASTM A352 Gr. LCB, ASTM A351 Gr. CF8M / CF3M
DISC
CA-15 / SS 316 / SS 316L
SPRING
SS 316
DESIGN STANDARD
BS EN ISO 15761
TESTING STANDARD
API 598 / BS EN 12266-1
ENDS
FLANGED END

TEST PRESSURES IN BAR

#150 #300
HYDRO SHELL 30 76
HYDRO SEAT 22 56

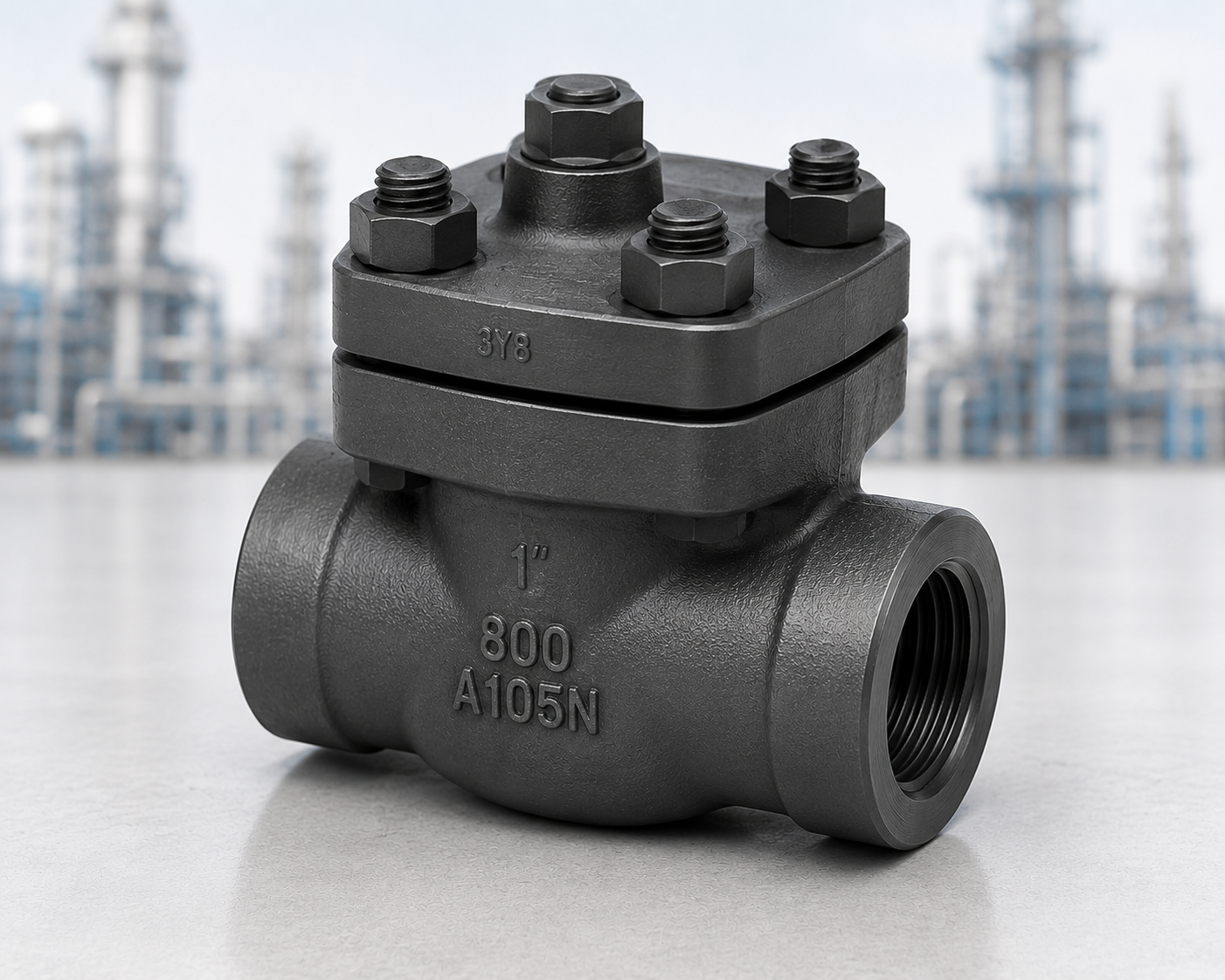

FORGED VALVE
CLASS - 800, 1500, 2500
SIZE RANGE - 15 to 50 mm
BODY & BONNET
A105 / F304 / F316 / ASTM A182 Gr. F11, F22, F5, F9
TRIMS
ASTM A276 TYPE 410 / 304 / 316
DESIGN STANDARD
API 602, ISO-15761, BS:5352, ASME B16.34
TESTING STANDARD
API 598 / EN 12266-1
ENDS
SOCKET END / SCREWED END / BUTT WELD END / FLANGED END

TEST PRESSURES IN BAR

#800 #1500 #2500
HYDRO SHELL 211 392 640
HYDRO SEAT 152 287 470
AIR SEAT 7 7 7

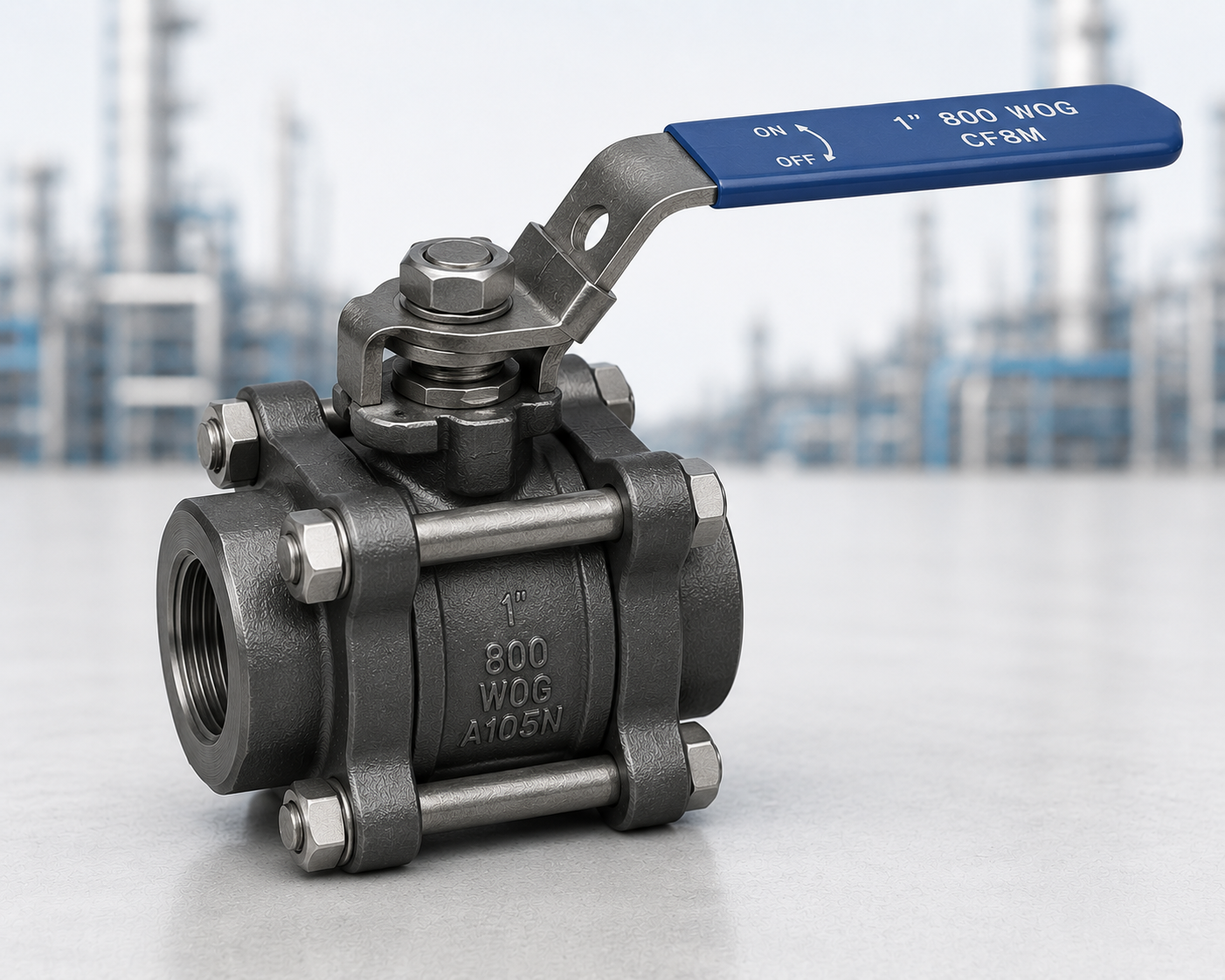

3 PIECE FORGED BALL VALVE
CLASS - 800, 1500, 2500
SIZE RANGE - 15 to 50 mm
BODY & BONNET
A105 / F304 / F316
TRIMS
SS410 / SS304 / SS316
DESIGN STANDARD
BS EN ISO 17292
TESTING STANDARD
EN 12266-1
ENDS
SOCKET / SCREWED / BUTT WELD / FLANGED END

TEST PRESSURES IN BAR

#800 #1500 #2500
HYDRO SHELL 207 392 640
HYDRO SEAT 77 287 470
AIR SEAT 7 7 7

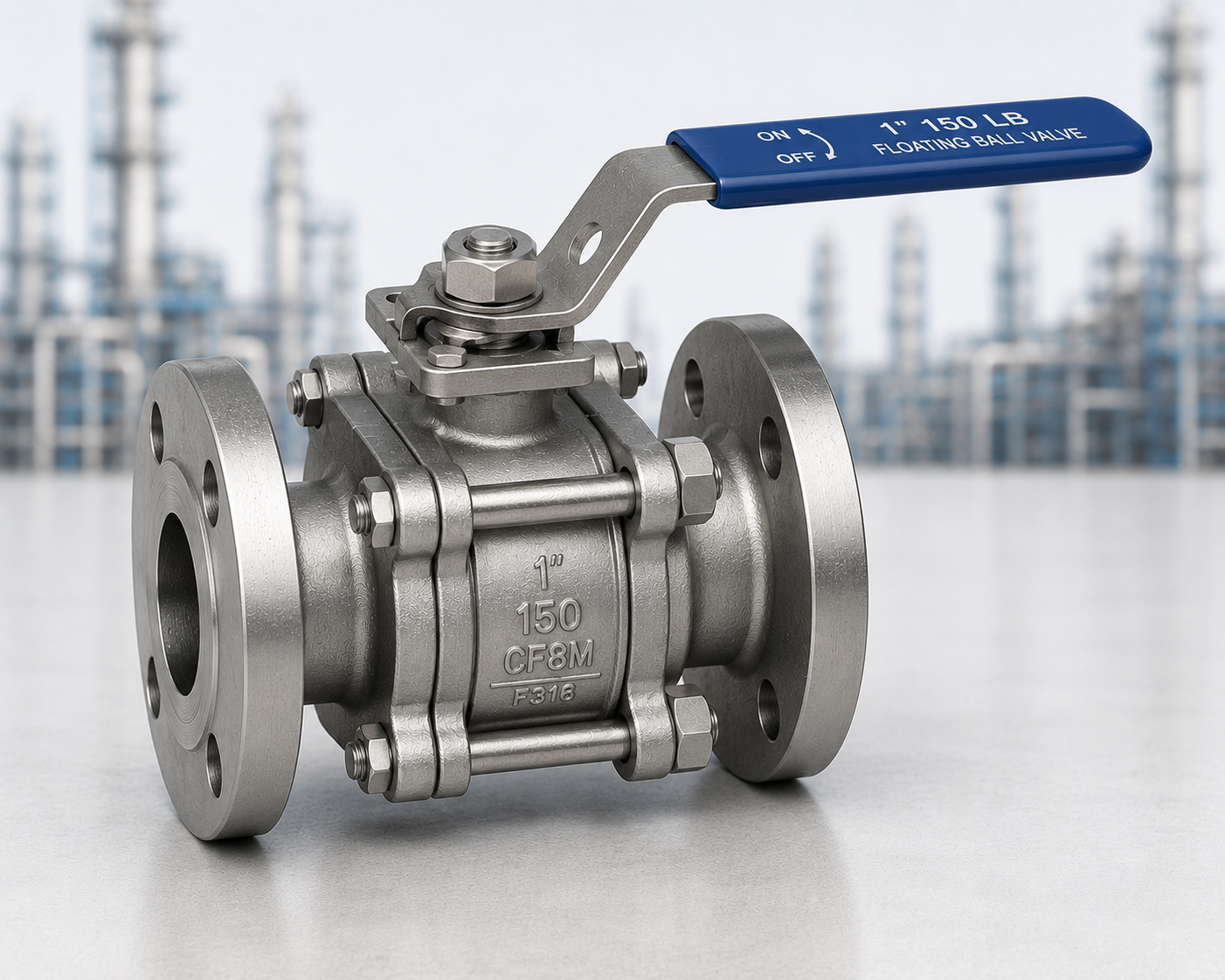

FLOATING BALL VALVE
CLASS - 150, 300, 600
SIZE RANGE - 15 to 300mm
BODY & BONNET
ASTM A216 Gr. WCB, ASTM A352 Gr.LCB, ASTM A351 Gr.CF8 / CF8M / CF3 / CF3M, ASTM A890/ A995 4A/5A, ASTM A743 CN7M
BALL
CA15 / CF8 / CF8M / CF3 / CF3M / CN7M / DUPLEX
DESIGN STANDARD
BS EN ISO 17292 (BS 5351) / ASME B16.34
TESTING STANDARD
API 598 / BS EN 12266-1
ENDS
FLANGED END

TEST PRESSURES IN BAR

#150 #300 #600
HYDRO SHELL 30 76 156
HYDRO SEAT 22 56 113
AIR SEAT 7 7 7

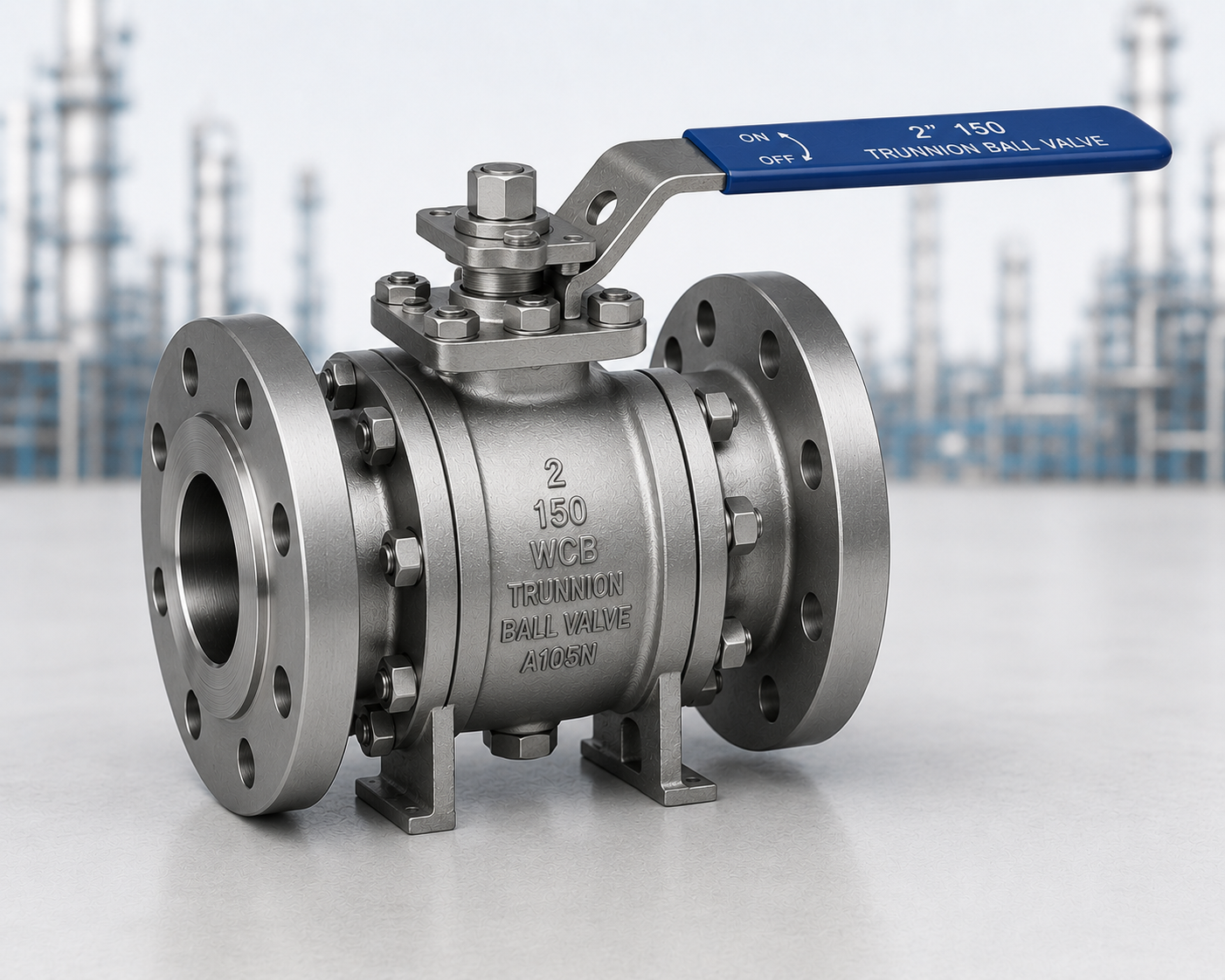

TRUNNION MOUNTED BALL VALVE
CLASS - 150, 300, 600
SIZE RANGE - 150 to 600mm
BODY & BONNET
ASTM A216 WCB, ASTM A352 LCB, ASTM A351 Gr.CF8 / CF8M / CF3 / CF3M, ASTM A890/A995 4A/5A, ASTM A743 CN7M
BALL
CA15/ CF8 / CF8M / CF3 / CF3M / CN7M / DUPLEX
DESIGN STANDARD
BS EN ISO 17292 (BS 5351) / ASME B16.34
TESTING STANDARD
API 598 / BS EN 12266-1
ENDS
FLANGED END / BUTT WELD END

TEST PRESSURES IN BAR

#150 #300 #600
HYDRO SHELL 30 76 156
HYDRO SEAT 22 56 113
AIR SEAT 7 7 7

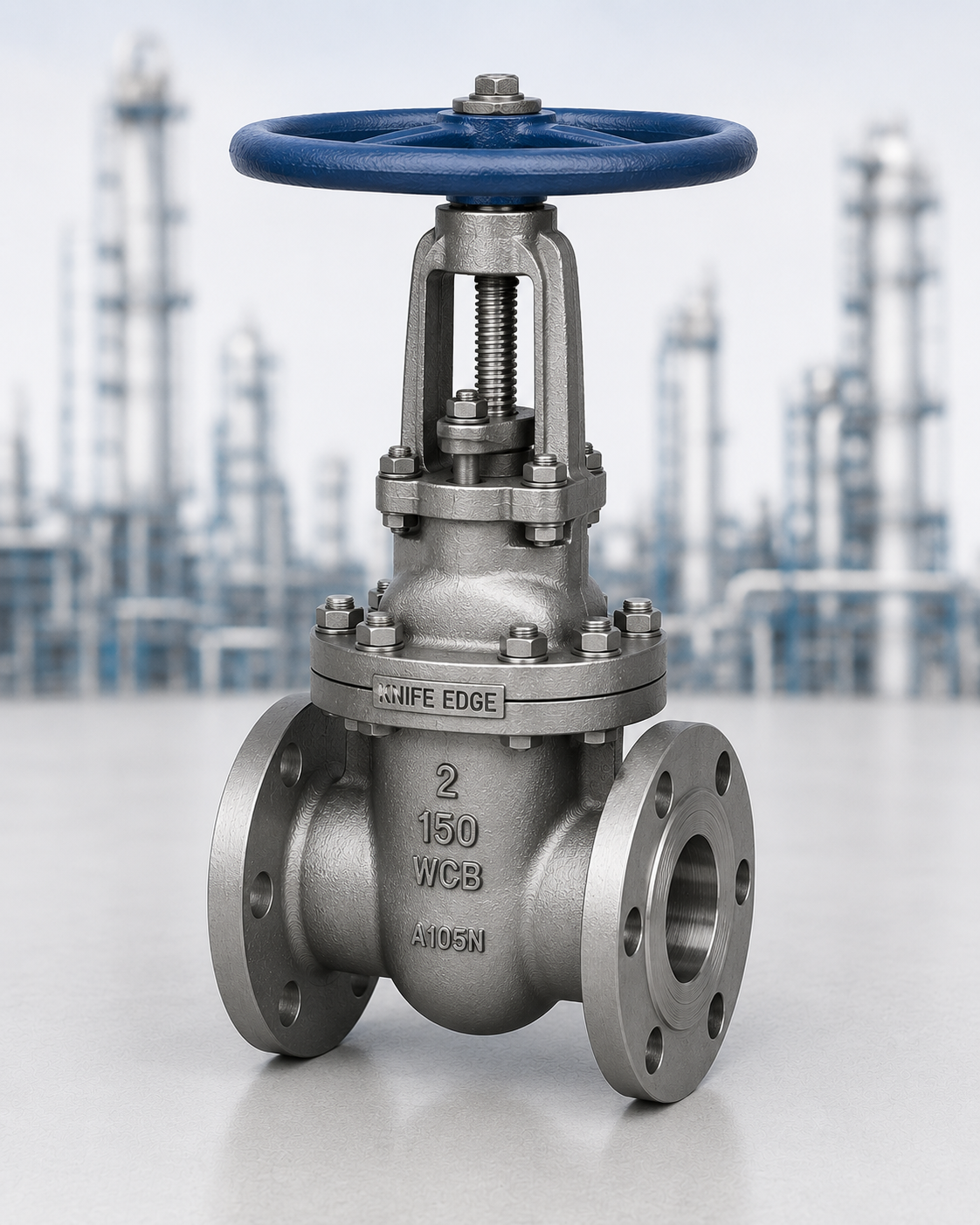

KNIFE EDGE GATE VALVE
CLASS - PN 10
SIZE RANGE - 40 to 600mm
BODY & BONNET
ASTM A216 Gr. WCB, ASTM A351 Gr. CF8/CF8M
TRIMS
ASTM A276 TYPE SS410 / SS304 / SS316
DESIGN STANDARD
Generally Confirming to MSS-SP 81
TESTING STANDARD
Generally Confirming to MSS-SP 81
ENDS
Wafer & Lugged

TEST PRESSURES IN BAR

PN 10
HYDRO SHELL 15
HYDRO SEAT 11

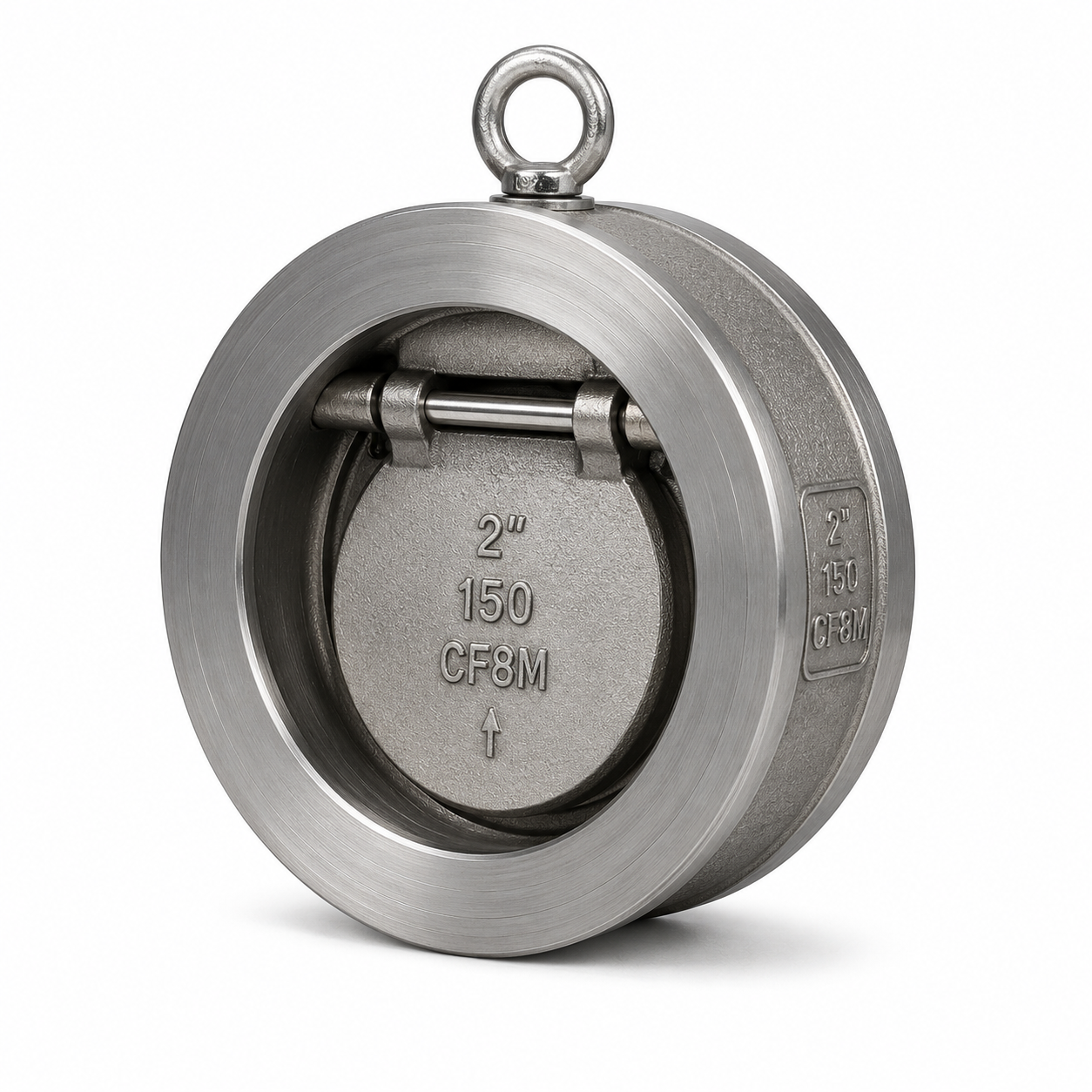

SINGLE PLATE WAFER CHECK VALVE
CLASS - PN 10
SIZE RANGE - 40 to 600mm
BODY & BONNET
ASTM A216 Gr. WCB / A351 Gr. CF8 / CF8M
TRIM
Carbon Steel / SS304 / SS316
MANUFACTURING STANDARD
API 6D
TESTING STANDARD
API 6D / API 598

TEST PRESSURES IN BAR

PN 10
HYDRO SHELL 15
HYDRO SEAT 11

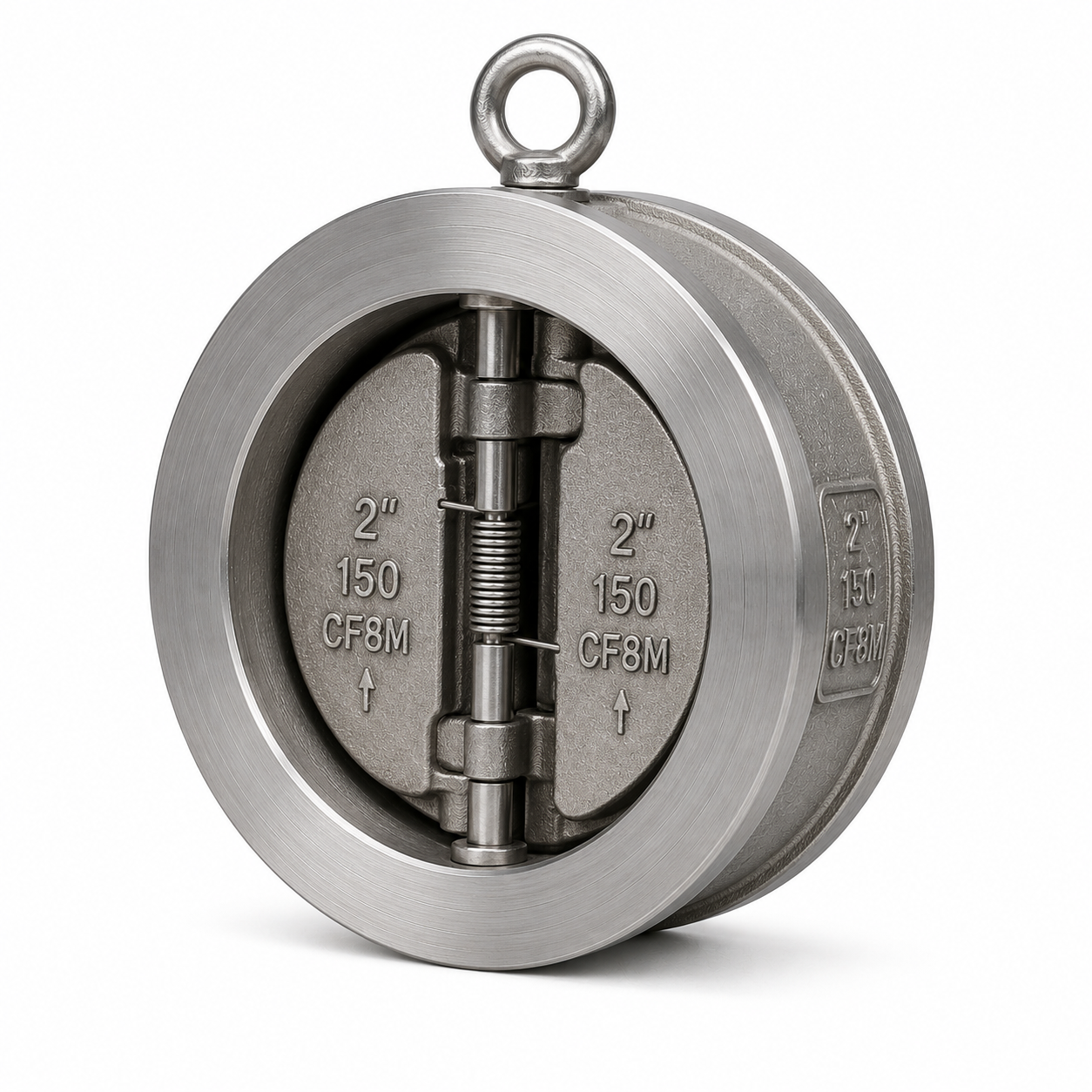

DUAL PLATE CHECK VALVE
CLASS - 150, 300
SIZE RANGE - 50 to 600mm
BODY & BONNET
ASTM A216 Gr. WCB, ASTM A351 Gr. CF8/CF8M, Ductile Iron ASTM A395 / S.G. Iron EN 1563 No. EN-JS 1024
SPRING
Stainless Steel ASTM A240 Type 316 / ASTM A312 Type 316
SEAT
BUNA-N, EPDM, VITON
DESIGN STANDARD
API 594 / API 6D
TESTING STANDARD
API 598

TEST PRESSURES IN BAR

#150 #300
HYDRO SHELL 30 76
HYDRO SEAT 22 56

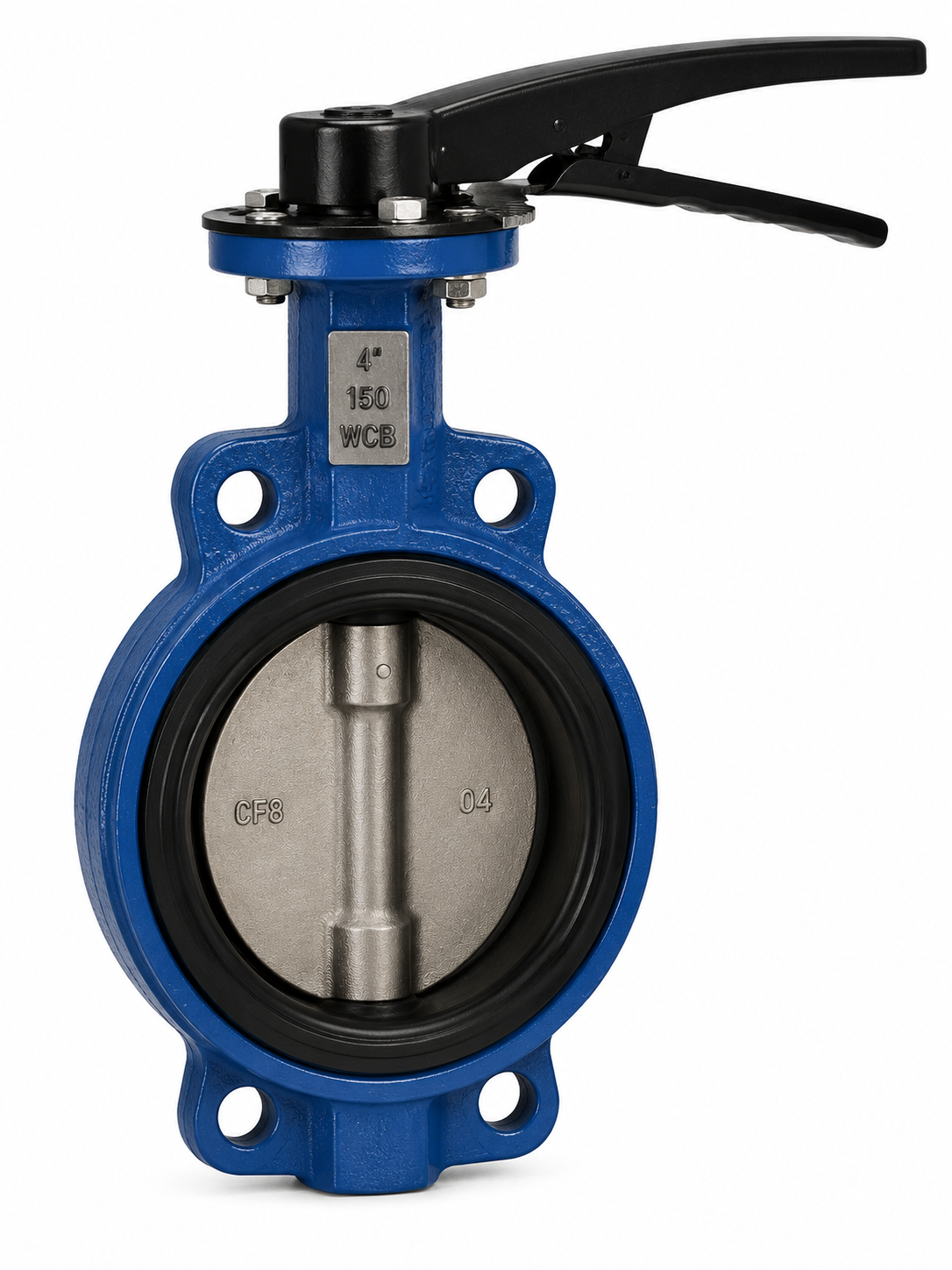

RUBBER LINED BUTTERFLY VALVE
CLASS - PN 10 / PN 16
SIZE RANGE - 40 to 1300mm
BODY & BONNET
CI (IS: 210-GF 220) / WCB (ASTM A216)
TRIMS
410 / 304 / 316 - (ASTM A276)
SEAT
EPDM / NITRILE
DESIGN STANDARD
API 609 / BS EN 593
TESTING STANDARD
API 598 / BS EN 12266 - Part 1, 2

TEST PRESSURES IN BAR

PN 10 PN 16
HYDRO SHELL 15 24
HYDRO SEAT 11 18
AIR SEAT 7 7

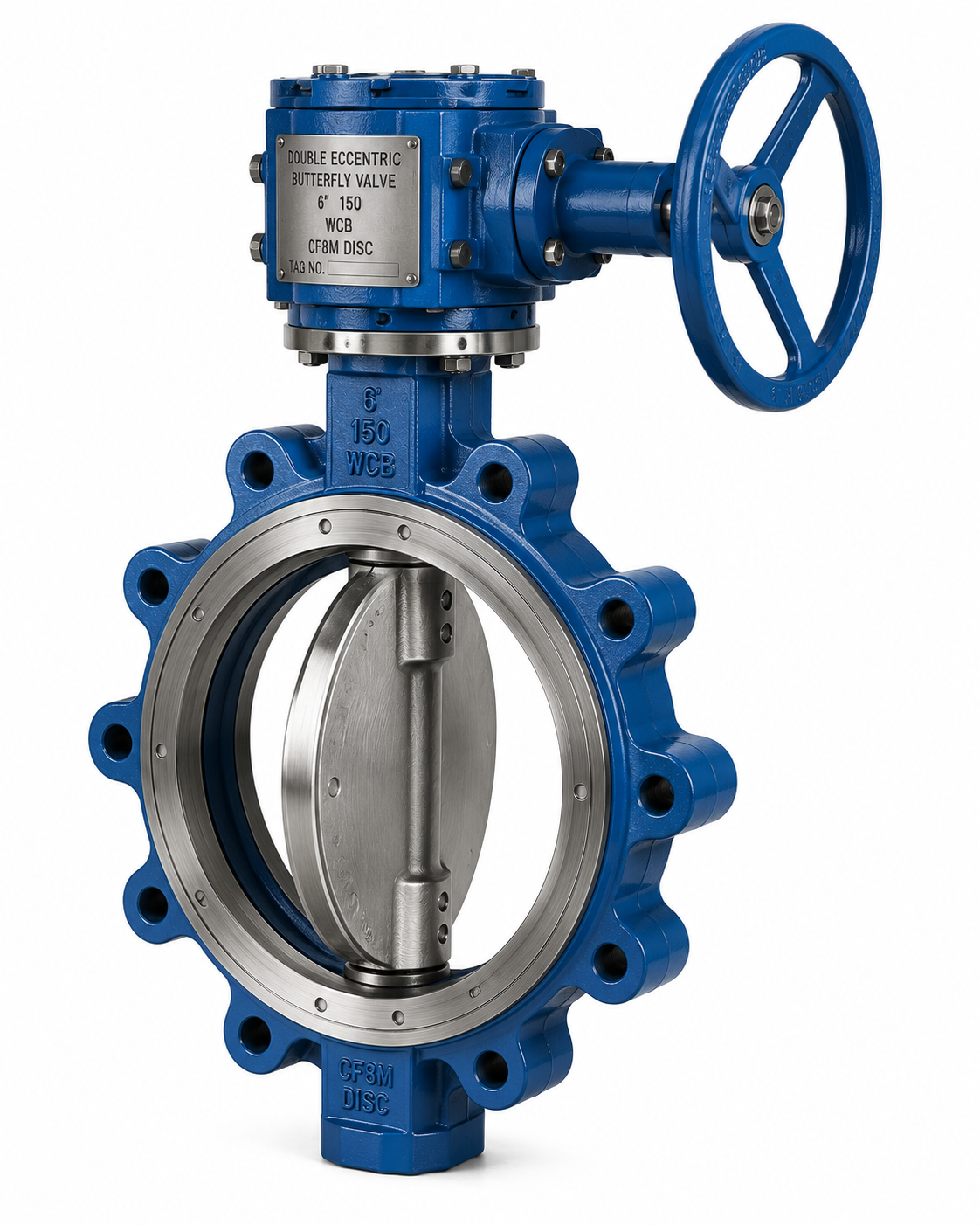

Double Eccentric Butterfly Valve
CLASS - 150, 300
SIZE RANGE - 80 to 600mm
BODY & BONNET
WCB / CF8 / CF8M
TRIMS
410 / 304 / 316
DESIGN STANDARD
API 609 / BS EN 593
TESTING STANDARD
API 598 / BS EN 12266- Part 1,2
ENDS
Wafer / Wafer Lugged

TEST PRESSURES IN BAR

#150 #300
HYDRO SHELL 30 76
HYDRO SEAT 22 56
AIR SEAT 7 7

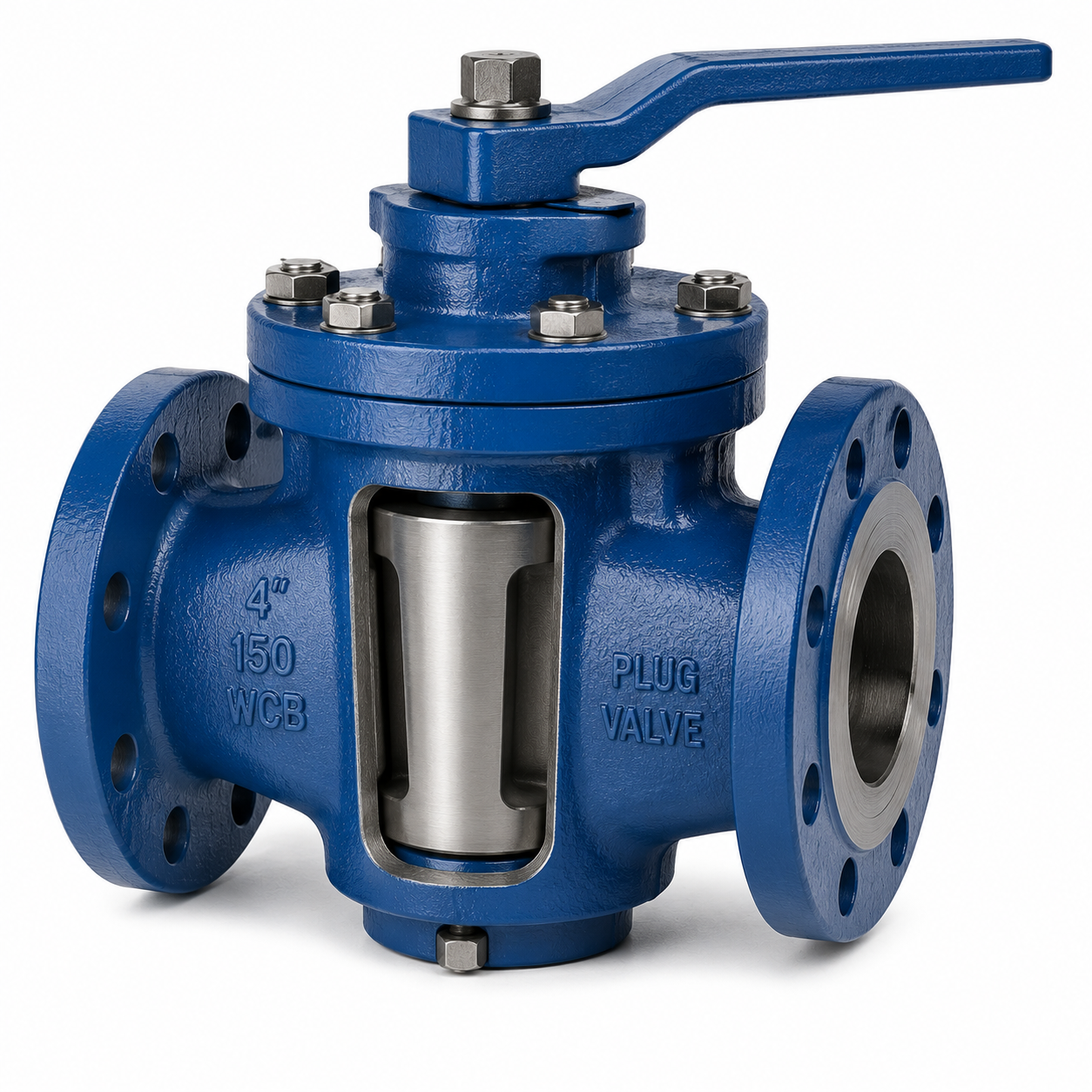

Sleeved Plug Valve
CLASS - 150, 300
SIZE RANGE - 15 to 300mm
BODY & BONNET
ASTM A216 Gr.WCB, ASTM A351 Gr.CF8 / CF8M / CF3 / CF3M
Sleeve MOC
PTFE, Glass PTFE, Carbon PTFE, Graphite PTFE
DESIGN STANDARD
API 599
TESTING STANDARD
API 598
ENDS
Flanged End

TEST PRESSURES IN BAR

#150 #300
HYDRO SHELL 30 76
HYDRO SEAT 22 56
AIR SEAT 7 7
Lined Plug Valve
CLASS - 150
SIZE RANGE - 5 to 200mm
BODY & BONNET
ASTM A216 Gr.WCB, ASTM A351 Gr.CF8 / CF8M / CF3 / CF3M
LINING MATERIAL
PFA, FEP
DESIGN STANDARD
API 599
TESTING STANDARD
API 598
ENDS
Flanged End

TEST PRESSURES IN BAR

#150
HYDRO SHELL 15
HYDRO SEAT 11

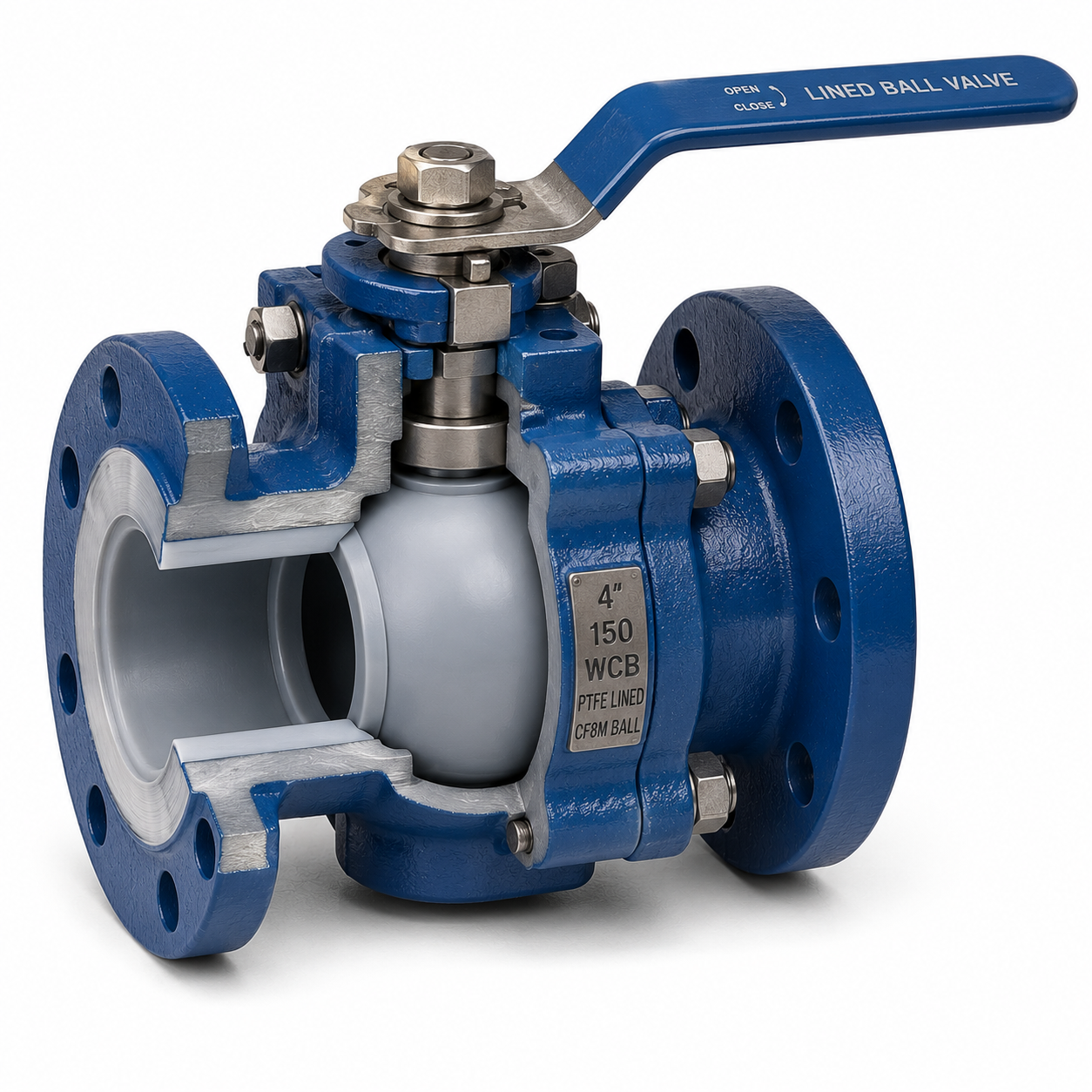

Lined Ball Valve
CLASS - 150
SIZE RANGE - 15 to 200mm
BODY & BONNET
ASTM A216 Gr.WCB, ASTM A351 Gr.CF8 / CF8M / CF3 / CF3M
LINING MATERIAL
PFA, FEP
DESIGN STANDARD
BS 5351 / EN ISO 17292
TESTING STANDARD
API 598
ENDS
Flanged End

TEST PRESSURES IN BAR

#150
HYDRO SHELL 15
HYDRO SEAT 11
